Custom Industrial Commercial Juicer/Juice Extractor/Orange Juicer Suitable for juicing apples, pears, watermelons, grapes, oranges, and various other fruits.

Custom Industrial Commercial Juicer/Juice Extractor/Orange Juicer Suitable for juicing apples, pears, watermelons, grapes, oranges, and various other fruits.

Tên thương hiệu: WeSeW
Số mẫu: ac0075
MOQ: 1 cái
giá bán: US$200~US$1000/pc
Điều khoản thanh toán: T/T, Công Đoàn Phương Tây
Khả năng cung cấp: 1000000 chiếc mỗi tháng
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
CE,UL
Vật liệu:
thép không gỉ
Tính năng vật liệu:
Chịu nhiệt, chống cháy
Ứng dụng:
Công nghiệp hóa chất, vận chuyển ngũ cốc, vận chuyển khai thác mỏ, nhà máy điện
Thành phần cốt lõi:
Động cơ
Tên sản phẩm:
Máy ép trái cây và rau quả bằng thép không gỉ thương mại
chi tiết đóng gói:
Vỏ gỗ
Khả năng cung cấp:
1000000 chiếc mỗi tháng
Làm nổi bật:

commercial fruit juicer machine

,

industrial orange juice extractor

,

heavy-duty juicer for apples

Mô tả sản phẩm
Custom Industrial Commercial Juicer/Juice Extractor
High-performance industrial juicing equipment designed for extracting juice from apples, pears, watermelons, grapes, oranges, and various other fruits with maximum efficiency and yield.
Key Features
  • Automatic water slag separation system
  • High juice yield extraction technology
  • High-pressure pressing force capability
  • Rapid juice extraction process
  • Integrated juice extraction, dehydration, filtration, and pressing
Technical Operation
This industrial juicing system combines a crusher unit with a spiral juicer for optimal performance. The crusher, mounted directly above the juicer feed port, processes materials that then flow directly into the juicing mechanism.
Crusher Components
The crusher assembly includes a cylinder, high-speed flying knife rotor, bottom knife, motor, and pulley system. The rotating knife rotor operates within precise clearance to the bottom knife, creating an efficient cutting action that prepares materials for optimal juice extraction.
Juicer Construction
The juicer consists of a front support structure, feed hopper, precision spiral mechanism, filtration system, juice collection container, rear support, and dedicated slag discharge chute for continuous operation.
Working Principle
During operation, the motor drives the main shaft at constant speed via pulley transmission. Materials are initially chopped by high-speed rotating hammers and, through centrifugal force, pass through waist-shaped screen openings. This process reduces fruits and vegetables to 2-5mm particles before entering the spiral juicing system.
The spiral component features a gradually increasing bottom diameter and decreasing pitch toward the slag outlet. As materials advance through the spiral, the reduced cavity volume creates progressive compression. Raw materials fed into the hopper are pressed by the advancing screw, with extracted juice flowing through the filter into collection containers while waste materials discharge through the adjustable annular gap between screw and pressure-regulating cone.
Technical Specifications
Model Capacity (kg/h) Power Dimensions Feed Inlet Juice Outlet Tube Slag Discharge Opening Width
DRB-PS0.5T 300-500 3+2.2 1100*450*1550 170*135*140 DN30 140
DRB-PS1.5T 800-1500 1.5+4 1560*580*1470 170*135*140 DN30 140
Product Images

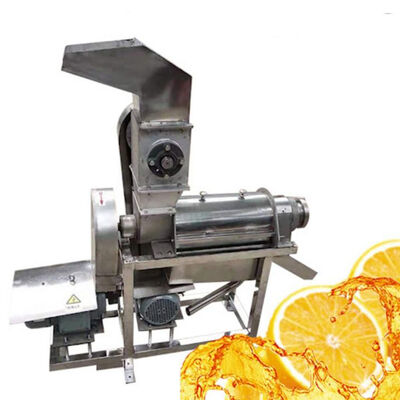

Custom Industrial Commercial Juicer/Juice Extractor/Orange Juicer Suitable for juicing apples, pears, watermelons, grapes, oranges, and various other fruits. 0

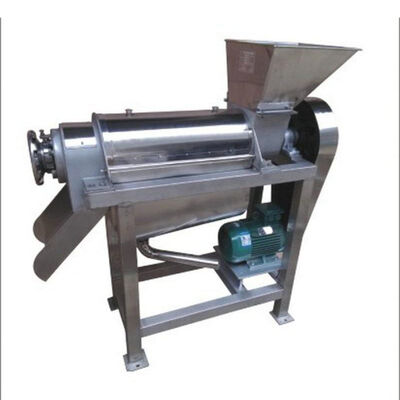

Custom Industrial Commercial Juicer/Juice Extractor/Orange Juicer Suitable for juicing apples, pears, watermelons, grapes, oranges, and various other fruits. 1
Custom Industrial Commercial Juicer/Juice Extractor/Orange Juicer Suitable for juicing apples, pears, watermelons, grapes, oranges, and various other fruits. 2

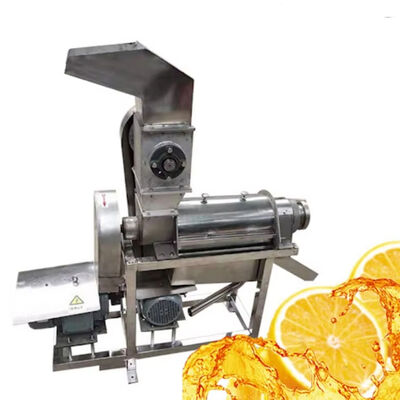

Custom Industrial Commercial Juicer/Juice Extractor/Orange Juicer Suitable for juicing apples, pears, watermelons, grapes, oranges, and various other fruits. 3

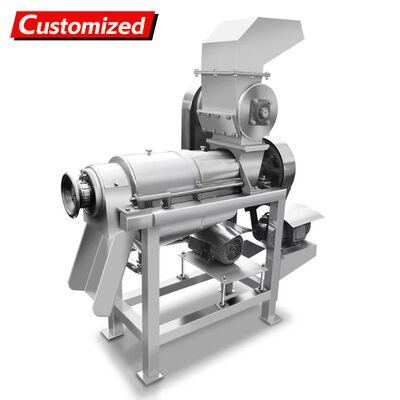

Custom Industrial Commercial Juicer/Juice Extractor/Orange Juicer Suitable for juicing apples, pears, watermelons, grapes, oranges, and various other fruits. 4

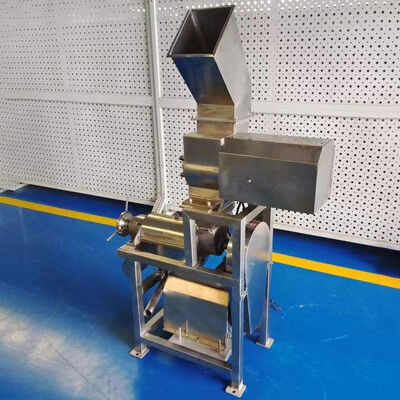

Custom Industrial Commercial Juicer/Juice Extractor/Orange Juicer Suitable for juicing apples, pears, watermelons, grapes, oranges, and various other fruits. 5

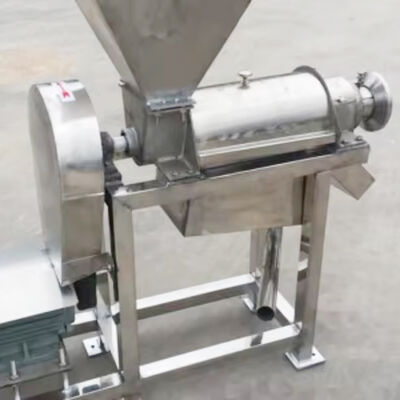

Custom Industrial Commercial Juicer/Juice Extractor/Orange Juicer Suitable for juicing apples, pears, watermelons, grapes, oranges, and various other fruits. 6
